The Kinetix 2000 series offers compact yet powerful solutions for small-scale automation applications. Designed with space constraints in mind, these drives provide high-performance motion control in industries ranging from robotics and material handling to packaging and electronic assembly. With its flexible configurations and integrated technologies, the Kinetix 2000 optimizes system size and functionality. This article explores how the Kinetix 2000’s compact design, wide input voltage range, integrated SERCOS interface, Drive Peripheral Interface (DPI), and support for various feedback configurations make it an ideal choice for small-scale automation. In this article, we will also discuss the versatility of the Kinetix 2000 series in various industries and highlight its seamless integration into diverse applications, all while maintaining exceptional performance and efficiency. Then, we will be discussing example modules for the Kinetix 2000 series.

Kinetix 2000 in Small-Scale Application

 Wide Input Voltage Range for Versatile Power Solutions

The Kinetix 2000’s broad input voltage range of 170 to 264V RMS AC, which allows it to be used with single-phase and three-phase systems (230V nominal), makes it an excellent choice for small-scale automation. Because of its adaptability, customers may easily incorporate the drive into various power arrangements, guaranteeing reliable performance in various applications. The Kinetix 2000 maximizes space savings while guaranteeing dependable performance, whether it is powering material handling systems or low-power robotics. Because of its versatility, it is the perfect option for small automation systems where power and space are important factors.

Compact Design for Small-Scale Applications

Because of its compact size, the Kinetix 2000 series is perfect for small-scale automation systems with limited space. The IAM converters start at a modest 2.0 kW for 230V single-phase input. Users may maximize important space while keeping good performance thanks to this simplified footprint. Multiple separate connections are no longer necessary, thanks to the SERCOS interface, which significantly simplifies wiring. The Kinetix 2000 is an effective choice for restricted automation settings because of its small size and cutting-edge features, which include easy-to-use components and simpler installation. The Kinetix 2000 outperforms bigger systems, such as the Kinetix 5500 (Bulletin 2198), which is intended for mid-scale applications.

Power Performance in Small-Scale Automation

The Kinetix 2000 series is the ideal option for small to mid-sized automation systems because it offers remarkable high-power performance in a tiny package. It provides strong motion control capabilities without sacrificing space thanks to its broad power range of 0.3 kW to 3.0 kW and continuous output currents ranging from 1.0 to 9.5 Amps rms. The Kinetix 2000 is ideal for demanding small-scale applications, including robotics, material handling, packaging, and textile production, because of these qualities. Compact sizes of the Bulletin 2093 modules, which come in integrated axis modules (IAMs) and axis modules (AMs), make it simpler to incorporate them into systems with limited space. The Kinetix 3500 (Bulletin 2095) has more sophisticated motion control functions and a higher output power for more power-demanding applications that need more accuracy. Businesses may improve their automation systems while lowering the total system footprint thanks to the Kinetix 2000 series’ compact size and great performance, which is essential for these applications.

Integrated SERCOS Interface for Simplified Connectivity in Small-Scale Automation

An integrated SERCOS interface, a fiber-optic communication link that requires just one cable, is used by the Kinetix 2000 series to greatly simplify wiring in small-scale automation applications. This digital interface is perfect for small, multi-axis integration since it enables I/O control and offers quick, dependable communication between the drive and controller. The Kinetix 2000 ensures maximum performance in applications like robotics, material handling, and packaging by streamlining installation and improving system efficiency through the use of SERCOS. A variety of modules are included in the Kinetix 2000 (Bulletin 2093), ranging from axis modules (AMs) for more adaptable configurations to IAMs for designs that save space. Because of these configurations, the Kinetix 2000 series is ideal for small to mid-sized automation systems where connection and system footprint reduction are top concerns.

Drive Peripheral Interface for Enhanced Connectivity

Drive Peripheral Interface connector ports on the Kinetix 2000 series provide a smooth connection to the DPI Human Interface Module and its software. Making small-scale automation system setup, diagnosis, and monitoring easier improves user experience. Easy access to system settings, real-time diagnostics, and effective troubleshooting are made possible by the DPI interface, which guarantees more seamless operation and speedier problem-solving. The Kinetix 2000, for instance, has DPI connections that enable quick communication with its associated software and give users insightful information about system performance. By simplifying the diagnostic procedure, this functionality not only increases system uptime but also streamlines workflow. With improved usability and connection, such integration aids users in streamlining small to medium-sized automation applications.

Support for Various Feedback Configurations

With support for both incremental and absolute encoder feedback, the Kinetix 2000 series offers a wide range of feedback choices that enable accurate motion control and system integration. It has high-resolution single-turn and multi-turn feedback setups, which are crucial for accuracy-demanding small-scale automation applications. A feedback-only auxiliary axis is another element of the series that improves system accuracy. Modules like IAMs and AMs are examples of the Kinetix 2000, each of which offers a unique feedback configuration to accommodate a range of applications. For more complicated systems, the Kinetix 2000-CM (Bulletin 2093-CM) variation offers additional possibilities for feedback. Similar to this, the Kinetix 2000-ET (Bulletin 2093-ET) module ensures accurate and dependable motion control in small designs by providing integrated encoder feedback for effective performance in applications like robotics and packaging.

Flexible Application in Various Industries

Many small-to-mid-sized applications in a variety of sectors are intended to be served by the Kinetix 2000 series. This series offers accurate motion control in a small package, whether it is utilized in robotics, material handling, indexing, converting, X-Y tables, textile machines, web processing, metal forming, packing, or electronic assembly. The Kinetix 2000’s adaptability is demonstrated by its capacity to function in a variety of applications while maintaining accuracy and efficiency. Kinetix 2000 (Bulletin 2093), Kinetix 2000-C (Bulletin 2093-C), and Kinetix 2000-M (Bulletin 2093-M) are a few examples of modules in the series. These modules enable high-performance motion control in situations with limited space, and they offer adaptable solutions that satisfy the unique requirements of various sectors.

Example Modules

2093-AC05-MP1

The 2093-AC05-MP series includes the 2093-AC05-MP1 module, which has an inverter and 230V AC power converter. It produces a notional 325V DC output and runs on a 264V AC three-phase input. The system consists of suitable parts such as servo motors and actuators, as well as a Power Rail for control signals. The drive provides 3.0 kW of continuous power and 6.0 kW of peak power with a 95% efficiency rate. It is appropriate for a variety of industrial settings due to its support for temperatures between -40 and 50°C, tolerance to vibration, and small size (1.32 kg).

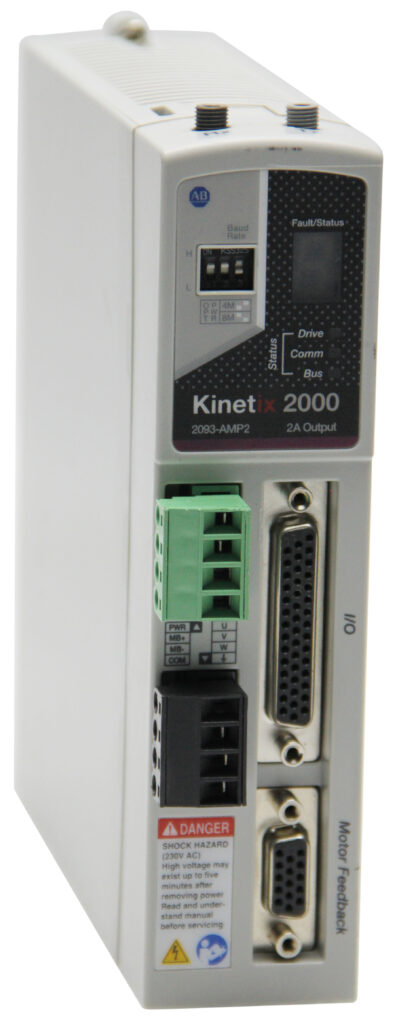

2093-AM02

The 2093-AM02, part of the Kinetix 2000 multi-axis servo drive series, is designed for small-scale automation applications. It uses motor power, feedback, and brake cables with quick-connect connections and has a 230V DC bus power inverter installed on a Kinetix 2000 power rail. The 2093-AM02 has an efficiency of 98%, a peak current of 28.5 A, and a constant output power of 1.9 kW. Its environmental specifications include shock durability, vibration resistance, and operating temperatures between 0 and 50°C. It weighs 1.32 kg and is sturdy and small. In industrial settings, it guarantees dependable and effective operation with an auxiliary control power of 0.45 A.

Final Thoughts

In conclusion, the Kinetix 2000 series exemplifies compact efficiency in small-scale automation, offering a perfect balance between size, performance, and versatility. With its wide input voltage range, integrated SERCOS interface, and DPI, it simplifies system integration and reduces installation complexity. Its support for multiple feedback configurations ensures precision in motion control, making it ideal for diverse industries like robotics, material handling, and packaging. The Kinetix 2000 proves that even small-scale systems can achieve high performance, optimizing both space and power consumption. By seamlessly integrating into various applications, it provides a reliable, efficient, and space-saving solution for modern automation challenges.
