The Kinetix 2000 is a multi-axis servo drive series designed for high-precision motion control in industrial applications. With the adaptability to manage various power, voltage, and current requirements, it permits effective, coordinated control of numerous axes in machinery and automation systems. It uses the SERCOS interface to streamline wiring and improve real-time communication, making it perfect for demanding jobs like robotics, electronic assembly, and packaging. The series has variable output current to accommodate various operational requirements, high-resolution encoder feedback for accurate speed and position monitoring, and adjustable voltage and power capacity choices. The Kinetix 2000 guarantees effective, dependable, and economical automation with a modular configuration comprising Integrated Axis Modules (IAM), Axis Modules (AM), a power rail, and compatible Allen-Bradley servo motors.

Features of Kinetix 2000

SERCOS Interface for High-Speed Communication and Reduced Wiring

The Kinetix 2000 series incorporates the Serial Real-time Communications System (SERCOS) interface for accurate motion control, enabling fast, real-time communication. By replacing up to 18 separate cables per axis with a single fiber-optic link, SERCOS simplifies installation and lowers the possibility of wiring problems. Multi-axis systems are able to function in perfect harmony because of this simplified interface, which facilitates effective, coordinated data flow. In order to provide trustworthy motion control for demanding industrial applications, the Kinetix 2000 drives improve system performance and reliability. Kinetix 2000 drives improve system performance and dependability, guaranteeing trustworthy motion control for demanding industrial applications. For high-speed applications where dependable data flow and quick reaction times are essential, such as packaging, robotics, and electronic assembly, the SERCOS interface’s accuracy and simplicity make it perfect. With the help of this interface, customers may enjoy improved accuracy, shorter setup times, and fewer maintenance requirements, which makes the Kinetix 2000 an affordable option for contemporary, hectic industrial settings.

High-Resolution Encoder Feedback for Precise Control

The drives of the Kinetix 2000 series, which have high-resolution encoder feedback and enable absolute multi-turn, single-turn, and incremental encoders, provide remarkable precision in speed control and position tracking. This cutting-edge feedback technology enables responsive, accurate motion, making it perfect for demanding applications in textile equipment, X-Y tables, and robots. Users may customize feedback for each application with modules like the Kinetix 2000 series’ 2093-AC05-MP5 and 2093-AM05, which maximize performance across various operating needs. Operators can fulfill unique, precise demands using a wide range of encoder types, increasing productivity while decreasing setup time and mistakes.

Voltage Range

Designed to provide accuracy and control, the Kinetix 2000 series provides a flexible voltage range to accommodate a range of power requirements. It functions well in a variety of industrial environments and is made to run on 170 to 264V rms AC input for single-phase and three-phase (230V nominal) systems. Applications for this power configuration flexibility include high-speed packing and material handling. The Kinetix 2000’s versatility with various voltage classes is demonstrated by modules like the 2093-AC05-MP5 and 2093-AM01, which allow for optimal control in small- to mid-sized automation systems. In addition to improving the system’s power efficiency, the adjustable voltage input lowers energy expenses and setup time.

Power Capacity

To meet a variety of automation requirements, the Kinetix 2000 series maintains a balance between control and precision with variable power ratings. The Kinetix 2000 provides dependable performance for applications needing different power levels, such as packing and metal forming, with a continuous output power range of 0.3 kW to 3.0 kW. Modules such as the 2093-AC05-MP5 allow customers to scale power according to their needs by providing 2.0 kW with single-phase AC input and up to 3.0 kW with three-phase inputs. Especially in applications where power capacity is essential, this range enables precise power control and maximizes system efficiency.

Output Current

With an output current range of 1.0 to 9.5 Amps rms, the Kinetix 2000 series provides flexible control for a range of applications, such as electronic assembly, robotics, and textile machines. Users may choose the optimal current for particular jobs due to its changeable output current range, which improves accuracy and efficiency. The series’ capacity to manage a range of load needs is demonstrated by modules such as the 2093-AC05-MP5 and 2093-AM01, which offer customized performance in mid-sized automation systems.

Different Parts of a Kinetix 2000 Servo Drive System

Module for Integrated Axis (IAM)

The 2093-AC05-MPx IAM, a multipurpose 230V AC power converter and inverter that is installed on a 2093 power rail is the first component of the Kinetix 2000 drive system. The 2093-AC05-MP1, 2093-AC05-MP2, and 2093-AC05-MP5 are among the available possibilities. Each has a varied power capability that is suited to a certain motion application. Each IAM powers the system by transforming AC power into DC and allocating it across linked modules. A single IAM per power rail can control multiple axis modules, simplifying power and control in small installations.

Axis Modules (AM)

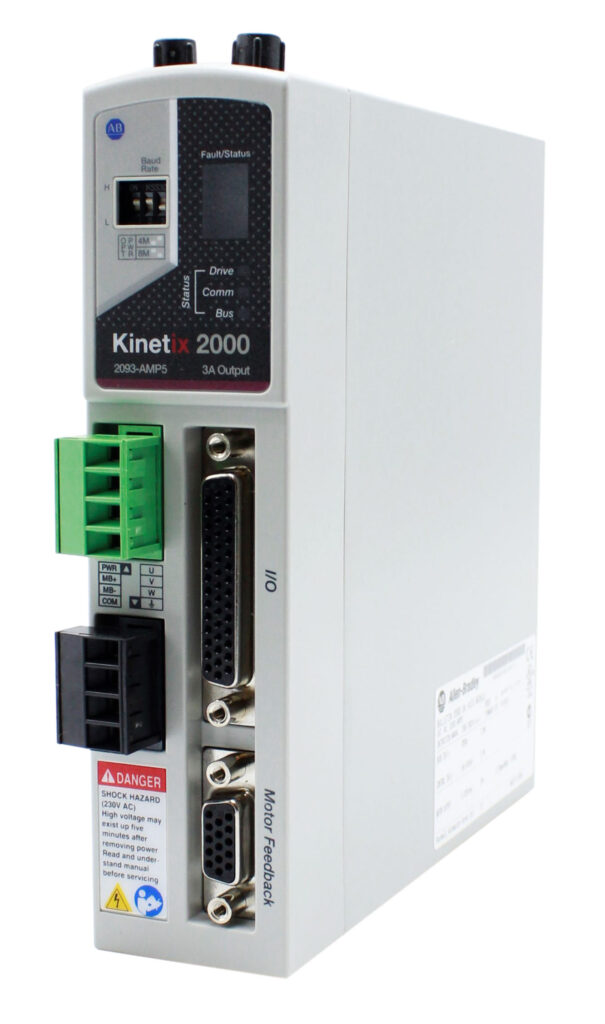

The bulletin AM 2093 allows up to seven AMs to be installed on a single power rail, extending the Kinetix 2000’s motion control capabilities. These modules are DC bus power inverters that come in two widths (2093-AMx and 2093-AMPx). Single-width alternatives like 2093-AMP1, 2093-AMP2, and 2093-AMP5 are suited for lower power applications, offering a flexible arrangement for a variety of motion activities. Double-width modules, such as 2093-AM01 and 2093-AM02, manage larger power needs.

Power Rail (2093-PRSxx)

The 2093-PRSxx power rail forms the backbone of the Kinetix 2000 drive system, providing a secure mounting platform and essential electrical connectors. It transfers power and control signals from the IAM to axis modules and includes configurations for one IAM, one optional shunt module, and up to seven AMs. Available in multiple sizes, the power rail ensures modularity and flexibility, supporting various setup sizes with filler slots for unused spaces.

Compatible Servo Motors and Actuators

Allen-Bradley servo motors, such as TLY, MP-Series, and Y-Series rotary motors, as well as LDC and LDL linear servo motors, are compatible with the Kinetix 2000. These motors link directly to the IAM and AMs for smooth integration, and they are suitable for a variety of applications, including semiconductor production and food processing. Furthermore, for certain jobs, Kinetix MPAS and MPAR linear actuators provide solutions for precise motion control.

Essential Accessories and Cables

The Kinetix 2000 system requires several accessories to be fully functional. Motor feedback and power cables guarantee dependable signal and power transfer, while SERCOS fiber-optic connections link the system to Allen-Bradley controllers. Additional accessories include auxiliary encoders for improved feedback, low-profile connector kits, shunt modules for regenerative systems, and AC line filters to customize the system to satisfy particular industrial requirements.

Example Modules

2093-AC05-MP1

The Kinetix 2000 multi-axis servo drive series includes the 2093-AC05-MP1, which has a three-phase input and can handle 230V AC power. Power and control signals are distributed across linked modules via an Integrated Axis Module mounted on a power rail. With a peak power output of 6.0 KW, a continuous power output to the bus of 3.0 KW, and an efficiency of up to 98%, this drive provides accurate motion control for servo motors and actuators that are compatible. It has sophisticated features, including adjustable shunt modules, a 0.3A auxiliary power control, and environmental resilience. The 2093-AC05-MP1 has a line filter and performs well in a range of load and environmental circumstances.

2093-AM02

The 2093-AM02, which is a 230V DC bus power inverter placed on a Kinetix 2000 power rail, is a member of the 2093-M0_x_ family of Axis Modules. It provides several cable types for easy connection to servo motors and employs specialized motor power, feedback, and braking cables with quick-connect options. The 2093-AM02 produces a power output of 1.9 kW and a continuous current of 9.5A with a peak current of 28.5A while operating at a nominal 325V DC input. With its integrated 50W shunt module, 98% efficiency, and resistance to stress, vibration, and dampness, it promotes environmental resilience.

Final Thoughts

In conclusion, the Kinetix 2000 series is an advanced, modular multi-axis servo drive system offering versatile solutions for high-precision industrial applications. Designed for seamless integration with Allen-Bradley servo motors, it delivers precise motion control through features like a SERCOS interface for efficient communication, high-resolution encoder feedback, flexible voltage, and power capacity, and a variable output current range. With adaptable components such as the IAM, AM, and Power Rail, the system can scale to diverse operational needs, supporting applications from robotics to electronic assembly. The Kinetix 2000’s robust design, efficiency, and cost-effectiveness make it ideal for demanding modern industrial environments.
