The PowerFlex 7 series from Allen-Bradley offers a diverse range of drives designed to meet varying industrial automation and control needs. This article explores the PowerFlex 700, 700S, 70, 750, 755, 753, and 700H models’ key features, power configurations, programming software, temperature ranges, control topologies, and communication protocols. Each model in the PowerFlex 7 series is tailored for different applications, from heavy-duty industrial environments to more compact, low-power operations. By comparing the specifications and capabilities across these models, the article provides a clear understanding for a person who wants to utilize this product line.

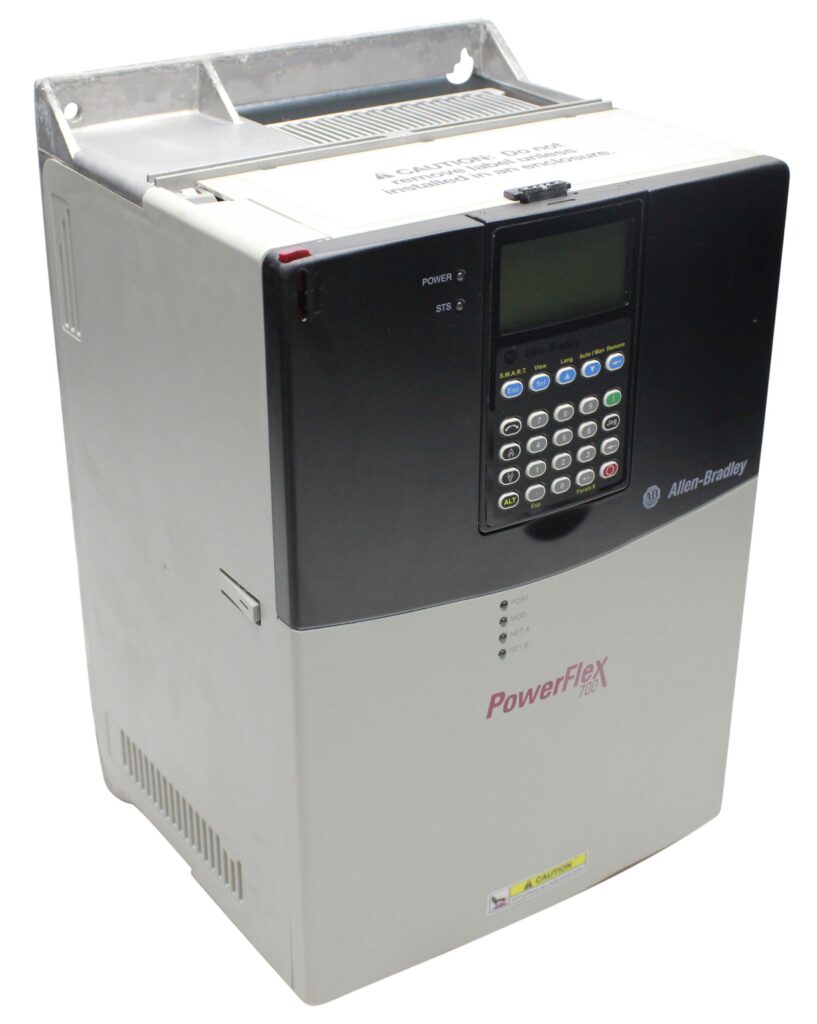

Comparison of Features of the PowerFlex Architecture-7 Product Line

 Voltage Ranges

Various voltage choices catered to various industrial demands are available in the PowerFlex architecture-7 product line. For heavy-duty applications, the PowerFlex 700H has the maximum voltage capacity, supporting up to 2400 HP with outputs up to 690V AC. With a maximum capacity of 1500 kW at 690V AC, the PowerFlex 700S can also handle high voltages, making it perfect for demanding industrial settings. With several power combinations up to 132 kW, the PowerFlex 700 series covers voltages ranging from 200-240V to 690V. The PowerFlex 70 series may accommodate smaller loads’ more moderate voltage ratings ranging from 240V to 600V. The PowerFlex 750 and PowerFlex 755 support 200-240V AC, 380-480V AC, 600V AC, and 690V AC for more control and versatility. The PowerFlex 753 offers mid-range power for applications requiring 200-240V, 380-480V, and 690V. Thanks to these voltage fluctuations, each drive type is guaranteed to meet a wide range of industrial control requirements.

Power Configurations

A variety of power options are available in the PowerFlex architecture-7 product series to accommodate various industrial requirements. With configurations designed for demanding and heavy-duty applications like motors and big machines, the PowerFlex 700H has the largest power capacity, supporting up to 2400 HP. The PowerFlex 700S is perfect for high-power needs in extensive industrial settings since it can provide a significant amount of power, up to 1500 kW. The PowerFlex 700 can accommodate a variety of medium-power applications with its flexible configurations, which generally reach up to 132 kW. With lower power levels of 0.75 kW to 30 kW, the PowerFlex 70 series provides more compact solutions that are appropriate for smaller equipment. For sophisticated motor control and energy efficiency in a variety of industrial processes, the PowerFlex 750 and PowerFlex 755 series provide versatile power options ranging from 0.75 kW to 500 kW. For a variety of automation requirements, these combinations guarantee peak performance.

Temperature Range

Different kinds of the PowerFlex Architecture-7 series drives have varying operating temperature ranges, which reflects how well they function in various industrial settings. The maximum ambient temperature (without derating) for open IP 20-rated PowerFlex 700 drives is between 0 and 50 degrees Celsius. All enclosure choices for the PowerFlex 753 have a storage temperature range of -40 to 70 degrees Celsius. To accommodate settings where greater ambient temperatures may be encountered, the PowerFlex 70 is made to operate within a somewhat more constrained temperature range of 32 to 104 degrees Fahrenheit. With a wider operating temperature range of 0°C to 50°C, the PowerFlex 750 and PowerFlex 755 series drives offer versatility for usage in more harsh settings, such as those with higher ambient temperatures or frequent temperature swings.

Control Topologies

Different control topologies are available for the PowerFlex 7 series drives to meet a range of industrial automation requirements. PowerFlex 700 drives provide a vector control technique that incorporates Allen-Bradley Force Technology for sophisticated motor control. These drives also provide versatile and accurate control for both conventional and demanding applications by supporting sensorless vector control and voltage per hertz. PowerFlex 700S drives provide a variety of motor control methods, including flux vector control. Slip compensation, safe torque-off, droop control, inertia ride-through, PI control, and user control sets are among the features that the PowerFlex 70 employs. The drives of the PowerFlex 753 series enable voltage per hertz control, sensorless vector control, and vector control with FORCE technology. Furthermore, the PowerFlex 755 AC drives allow a variety of control schemes. Vector control with FORCE technology, voltage per hertz control, permanent magnet motor control, and sensorless vector control are among the possible control alternatives. The PowerFlex 755TS drives use a number of application-specific factors in addition to TotalFORCE control technology. Ultimately, the PowerFlex 700H drives support Volts-per-Hertz control and sensorless vector control modes.

Communication Protocols

Allen-Bradley provides optional communications adapters for the USB, Ethernet, ControlNet, and DeviceNet networks, among other communication possibilities, for the PowerFlex 700 series. Ethernet and ControlNet networks are among the sophisticated communication features offered by the PowerFlex 700S series. In order to improve performance in big systems, it also supports high-speed fiber-optic connections (SynchLink) for data transfer and synchronization between drives. The PowerFlex 753’s dual-port Ethernet module allows customers to benefit from robust, fast Ethernet networks fully. The PowerFlex 755 has strong connectivity features, such as DeviceNet and Ethernet/IP. Because it offers pre-engineered power option bays, integrating it with different industrial networks is simple. Like the PowerFlex 755, the PowerFlex 755TS variant is extremely compatible with Allen-Bradley systems since it supports Ethernet/IP connectivity. Additionally, it provides versatility in regulating torque, velocity, and motor position.

Final Thoughts

In conclusion, Allen-Bradley’s PowerFlex Architecture-7 series provides a flexible selection of drives designed to satisfy the various requirements of industrial automation and control applications. Each model—whether the robust PowerFlex 700H, the high-performance PowerFlex 755, or the smaller PowerFlex 70—offers unique benefits regarding voltage ranges, power settings, temperature tolerances, and communication capabilities. While the PowerFlex 70 and 753 series are designed for smaller, more compact systems, the 700 and 700S series are excellent for high-power applications with strong voltage capabilities. By supporting a variety of motor control schemes, such as vector control, sensorless control, and cutting-edge technologies like permanent magnet motor control, the PowerFlex 755 and 750 series achieve a balance between performance and adaptability. Additionally, a variety of communication protocols, including ControlNet and Ethernet/IP, guarantee smooth integration into a range of industrial networks, improving system performance overall. Businesses may choose the best drive for their unique needs—whether they are for more energy-efficient, lower-power operations or high-demand industrial environments—by comparing these models.
