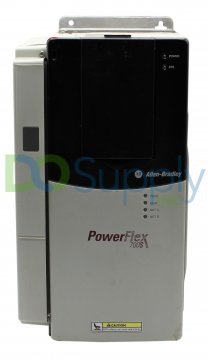

The PowerFlex 700S AC drives are prime examples of cutting-edge motor control solutions prioritizing accuracy, safety, and versatility. These drives, made for high-performance industrial settings, provide cutting-edge characteristics, including flexible communication choices, strong certification compliance, and Phase II control capabilities. With the help of sophisticated feedback systems, DriveLogix software integration, and SynchLink communication for real-time synchronization, they provide dynamic motor control. The PowerFlex 700S guarantees smooth performance in a variety of applications due to all these features that we are going to discuss below. After that, we will also look at some of the example modules.

Features of PowerFlex 700S Drive Series

Control Capabilities:

With Phase II control capabilities, the PowerFlex 700S AC drives prioritize safety while maintaining stability and accuracy in demanding industrial applications. This feature lowers risks and boosts efficiency by controlling intricate operations under changing circumstances. Advanced motor control modes that offer dynamic torque and speed changes, such as Full Vector Control and Flux Vector Control (with or without feedback), significantly enhance safety. By reducing motor strain and operating mistakes, these features guarantee fluid functioning. Combined, these characteristics make the PowerFlex 700S a dependable option for high-performance and safety-critical settings.

DriveLogix Software Integration:

By integrating DriveLogix software, which combines the sophisticated Logix control engine with high-performance drive functions, the PowerFlex 700S AC drives put safety first. By streamlining intricate logic functions directly within the drive, this seamless approach lowers the number of system components and possible points of failure. DriveLogix increases the safety and dependability of the system by reducing external dependencies. It is perfect for safety-critical industrial settings because of its small, effective design, which also guarantees economical and space-saving control.

Wide Voltage and Power Range:

With power outputs ranging from 50 to 1500 kW at 690V, 1 to 1600 HP at 500-600V, 1 to 1250 HP at 380-480V, and 1 to 100 HP at 200-240V, the PowerFlex 700S AC drives put safety and versatility first. The drives lower the possibility of equipment mismatches and operational problems by offering customized solutions for a range of voltage and power needs. Because of their adaptability, they are a safe and dependable option for preserving performance and safety in various challenging industrial settings.

Flexible Input Options:

With versatile input choices that allow both 6-pulse and 3-phase input configurations for maximum use of the drive’s rated current, the PowerFlex 700S AC drives improve safety and adaptability. The drives provide 50% of the rated current in settings with single-phase input, guaranteeing flexibility in response to changing power supply circumstances. This adaptability enables smooth integration into a variety of industrial configurations, taking into account areas or systems with varying electrical infrastructure. The drives are a secure and trusted option for intricate and dynamic industrial situations because they eliminate operating hazards and provide dependable functionality while retaining compatibility without sacrificing performance.

Multiple Configuration Options:

With a variety of configuration choices, the PowerFlex 700S AC drives prioritize safety and operating efficiency while enabling customers to customize setup and maintenance to suit their requirements. A remote keypad, an optional LCD HMI, or computer-based tools like DriveTools SP and Connected Components Workbench can all be used for configuration. These adaptable choices improve usability by facilitating effective troubleshooting and real-time performance improvement. These characteristics enable operators to retain control in dynamic and safety-critical situations while reducing operational risks and downtime by simplifying maintenance and monitoring. This ensures safe, dependable performance across a range of applications.

SynchLink Communication:

SynchLink communication, a high-speed fiber-optic link that permits real-time drive-to-drive synchronization and data transmission, improves safety and accuracy with the PowerFlex 700S AC drives. This technology lowers the hazards associated with misaligned operations by ensuring exact coordination for applications that need precise control or coordinated motion. SynchLink is a crucial component for safety-critical activities that need effective and timely performance in industrial settings because it reduces wire complexity and enhances system dependability while supporting high-speed data transfer and flawless synchronization.

Extensive Feedback Support:

With comprehensive feedback support and a focus on safety and accuracy, the PowerFlex 700S AC drives can accommodate devices such as incremental encoders, resolvers, high-resolution encoders, Stahl SSI, and Temposonics interfaces. With the help of these feedback choices, accurate motor control and process modifications are made possible by vital real-time data. The drives guarantee versatility to a range of applications by supporting a variety of feedback devices, improving precision and dependability. They are a safe option for preserving operational safety and attaining peak performance in challenging industrial settings because of their adaptability.

Communication Flexibility:

With configurable modules for connectivity with serial, Ethernet, and ControlNet networks, the PowerFlex 700S AC drives prioritize efficiency and safety while providing communication flexibility. Coordinated operations in challenging conditions are made possible by these modules, which provide smooth communication between drives, controllers, and industrial systems. By supporting compatibility with current infrastructure, these strong communication capabilities reduce the difficulties associated with system integration. The drives are perfect for safety-critical applications in contemporary, networked industrial settings because they improve operational dependability and lower hazards by enabling effective data sharing and coordinated control.

Robust Certification and Temperature Range:

The PowerFlex 700S AC drives fulfill strict requirements, including ATEX, CE, C-Tick, and UL, demonstrating safety and dependability via strong certification and temperature range compliance. These certifications ensure Secure operation across sectors, ensuring conformity to international safety and performance standards. The drives are made to function in a variety of conditions; for open/IP20 versions, they run between 0 and 50°C, and for IP56/NEMA Type 1 models, they run between 0 and 40°C. They are a reliable option for industries that prioritize safety and operational excellence because of their capacity to adjust to different temperatures, improving their dependability and guaranteeing safe, constant performance even under trying circumstances.

Example Modules

20DB022A0EYNANANL:

The PowerFlex 700S drive model 20DB022A0EYNANANL prioritizes performance and safety with cutting-edge features designed for safe industrial applications. Operating at 240 volts AC, this adjustable frequency AC drive is protected by an IP20 NEMA Type 1 enclosure. Important safety features include an adjustable bus Undervoltage trip with IGBT brake technology for managing voltage fluctuations. The drive ensures accurate and secure motor operation by supporting vector control with Force technology and volts-per-hertz. While LCD keypad programming and Logix integration make safe setup and operation easier, zero stacking lowers installation expenses.

20DB192A0EYNANNNN:

In motor control applications, safety and accuracy are given first priority by the 20DB192A0EYNANNNN AC drive from the PowerFlex 700S family. It provides 221 amps at 208V for dependable industrial performance while operating at 240 volts AC in a three-phase arrangement. Among the safety features are an adjustable bus Undervoltage trip for voltage protection, a heat sink thermistor with a microprocessor-triggered overtemperature trip, and an IGBT brake system for quick stopping. This drive is a safe and effective motor control solution because of its logic and power ride-thru capabilities, which provide operational resilience even in the face of power fluctuations.

Conclusion

In conclusion, the PowerFlex 700S AC drives combine precision, safety, and adaptability to satisfy the needs of high-performance industrial settings. These drives guarantee dynamic motor control and smooth synchronization with their Phase II control capabilities, DriveLogix software integration, SynchLink connection, and comprehensive feedback support. They provide unparalleled versatility and dependability because of their broad voltage and power range, many input and configuration choices, and strong certifications. These drives, which prioritize safety with cutting-edge features like configurable Undervoltage tripping and heat sink monitoring, are ideal for safety-critical industrial applications. Models like 20DB022A0EYNANANL and 20DB192A0EYNANNNN are prime examples.
